Cub Cadet 129 - engine
| | Engine Detail: |
| Engine Type: | Kohler K301A
|
| | gasoline
|
| | 1-cylinder
|
| | air-cooled
|
| Displacement: | 476 cc [29.07ci ]
|
| Bore/Stroke: | 3.375x3.25 inches [86 x 83 mm]
|
| Power: | 12 hp [8.9 kW]
|
| Air cleaner: | dry cartridge
|
| Rated RPMs: | 3600
|
| Idle RPMs: | 1000-3800
|
| Starter volts: | 12
|

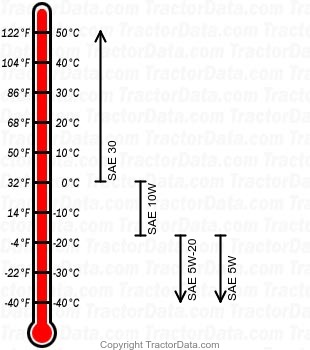

| Oil capacity: | 1.5 qts [1.4 L]
|
| Oil change: | 30 h
|
| Sparkplug: | Champion H-10
|
| Sparkplug gap: | 0.025 inches [0.635 mm]
|
| Point gap: | 0.020 inches [0.508 mm]
|
| Intake valve clearance: | 0.010 inches [0.254 mm] (cold)
|
| Exhaust valve clearance: | 0.020 inches [0.508 mm] (cold)
|
|
