Lawn Tractors > Cub Cadet > 107

Cub Cadet 107 Engine



Cub Cadet 107 lawn tractor photo
1969 - 1971
1X6/1X7 Series
Garden tractor
Series map:
106
107
126
10.0hp
10.0hp
12.0hp
Engine Detail
Kohler K241A
gasoline
1-cylinder
air-cooled
Displacement391 cc
23.9 ci
Bore/Stroke3.25x2.875 inches
83 x 73 mm
Power10 hp
7.5 kW
Compression7:1
Rated RPM3600
Idle RPM1000-3800
Torque16.2 lb-ft
22.0 Nm
Torque RPM2200
Starter volts12
SparkplugChampion H-10
Sparkplug gap0.025 inches
0.635 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.010 inches (cold)
0.254 mm
Exhaust valve clearance0.020 inches (cold)
0.508 mm
Engine Oil

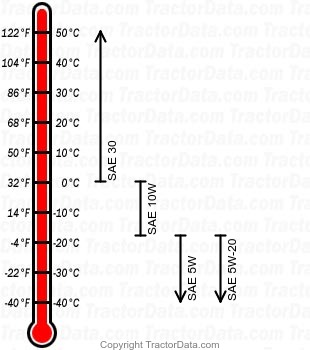

107 gasoline engine oil chart
Oil capacity1.5 qts
1.4 L
