Cub Cadet 106 Transmission


Cub Cadet 106 lawn tractor photo
1969 - 1971
1X6/1X7 Series
Garden tractor
Series map:
73
106
107
7.0hp
10.0hp
10.0hp
Transmissions overview
3-speed gear
6-speed
Transmission
Typegear
Gears3 forward and 1 reverse
Clutch4.5-inch dry disc
Oil capacity3.5 qts
3.3 L
Oil type
IH Hy-Tran
Speeds

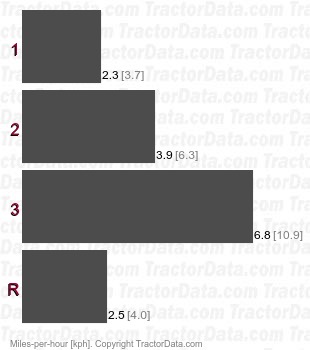

106  gear speeds

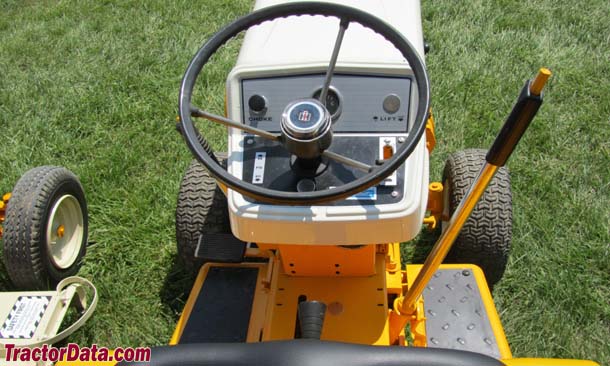

106 Transmission Controls
Cub Cadet 106 transmission controls
1Clutch/brake
2Throttle
3Gear shift
Transmission
Transmissioncreeper
Gears6 forward and 2 reverse
Clutch4.5-inch dry disc
Oil capacity3.5 qts (trans)
3.3 L
 0.5 qts (creeper)
0.5 L
Oil type
IH Hy-Tran
Optional creeper range is engaged by a lever on the left side of the drive line.
Speeds

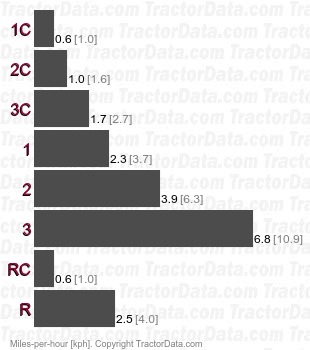

106 creeper  speeds
