| | 2005 - 2010 |
| 2500 Series | | Garden tractor |
|
Series map:
GT 2550
GT 2554
22.0hp
23.0hp
| Engine Detail |
| Kohler CH23S |
| gasoline |
| 2-cylinder |
| air-cooled horizontal-shaft V-twin |
| Displacement | 624 cc
38.1 ci
|
| Bore/Stroke | 3.03x2.64 inches
77 x 67 mm
|
| Power (gross) | 23 hp
17.2 kW
|
| Starter | electric
|
| Starter volts | 12
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

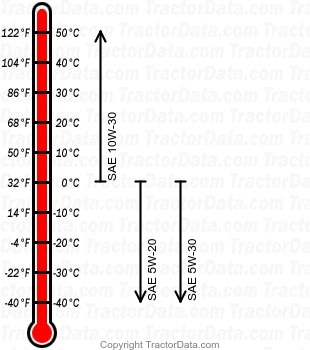

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 100 h
|
| Cub Cadet GT 2554 Engine |
 |
| Image courtesy of M D |
