| | 1998 - 2002 |
| Garden Series | | Garden tractor |
|
Series map:
2354HV
2554HV
23.0hp
25.0hp
| Engine Detail |
| Kohler CV25S |
| gasoline |
| 2-cylinder |
| air-cooled V-twin OHV |
| Displacement | 722 cc
44.1 ci
|
| Power (gross) | 25 hp
18.6 kW
|
| Air cleaner | dry with foam precleaner
|
| Idle RPM | 1550-3550
|
| Starter volts | 12
|
| Oil capacity | 2.1 qts
2.0 L
|
| Sparkplug gap | 0.030 inches
0.762 mm
|

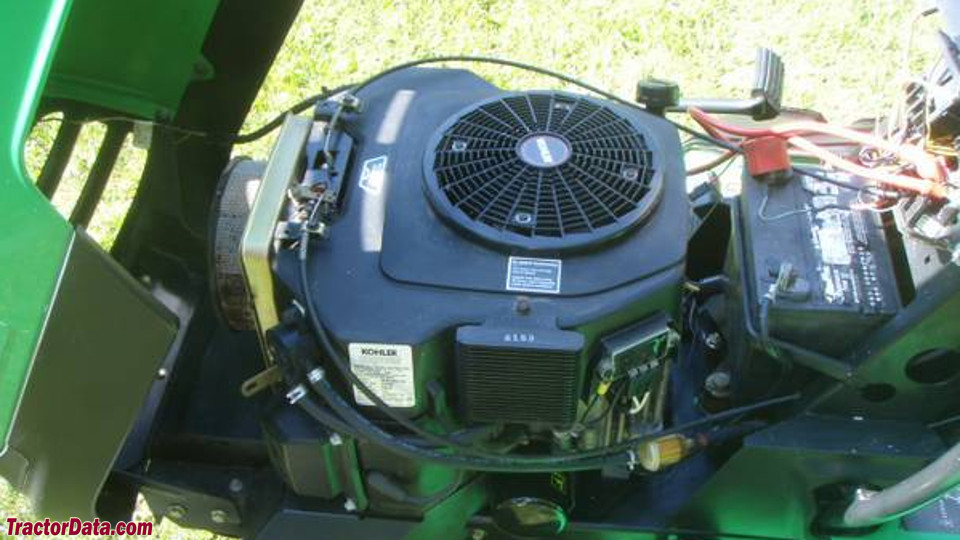

| Sabre 2554HV Engine |
 |
| Image courtesy of Pat McCormack |
