| | 1974 - 1979 |
| 600 Series | | Garden tractor |
|
Series map:
608
610
8.0hp
10.0hp
| Engine Detail |
| Briggs & Stratton 190707 |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 318 cc
19.44 ci
|
| Bore/Stroke | 3.00x2.75 inches
76 x 70 mm
|
| Power | 8 hp
6.0 kW
|
| Air cleaner | foam
|
| Rated RPM | 3600
|
| Idle RPM | 1800-3400
|
| Starter volts | 12
|
| Oil capacity | 1.13 qts
1.1 L
|

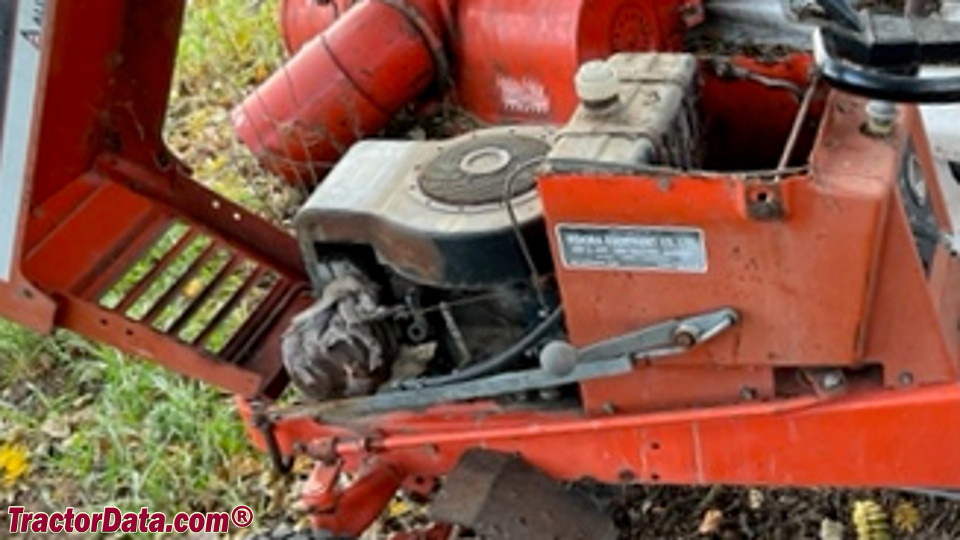

| Allis Chalmers 608 Engine |
 |
| Image courtesy of Lance Blais |
