| | 1973 |
| 400 Series | | Garden tractor |
|
Series map:
410
414
10.0hp
14.0hp
| Engine Detail |
| Kohler |
| gasoline |
| 1-cylinder |
| air-cooled |
| Displacement | 391 cc
23.9 ci
|
| Bore/Stroke | 3.25x2.875 inches
83 x 73 mm
|
| Power | 10 hp
7.5 kW
|
| Air cleaner | dry element
|
| Rated RPM | 3600
|
| Starter volts | 12
|

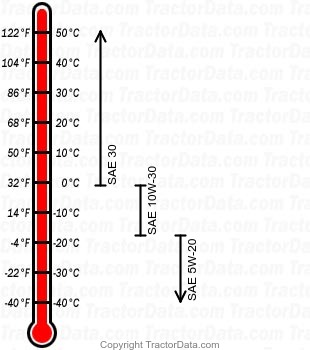

| Engine Oil |
|
| Oil capacity | 2 qts
1.9 L
|
| Oil change | 25 h
|
