John Deere X720 Transmission


John Deere X720 lawn tractor photo
2006 - 2012
Select X700 Series
Garden tractor
Series map:
X700
X720
X724
23.0hp
27.0hp
27.0hp
Transmission
TransmissionTuff Torq K92
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity7 qts
6.6 L
Hydrostatic transmission with Twin Touch foot pedals and dashboard-mounted cruise control standard.
Speeds
26-inch tires.

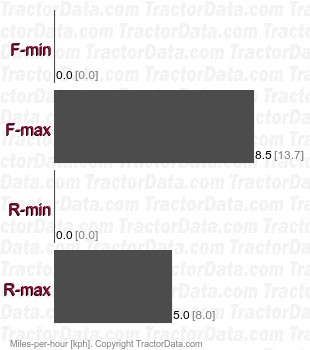

X720 K92 shaft-driven hydrostatic speeds
X720 Transmission Controls
John Deere X720 transmission controls
1Throttle
2Brake
3Forward
4Reverse
5Parking brake
6Cruise control
7Differential lock
