Lawn Tractors > John Deere > X585

John Deere X585 - engine

John Deere X585 lawn tractor photo
2002 - 2006   HDGT X Series
Garden tractor
Next model:John Deere X728
Series next:John Deere X595
Series back:John Deere X575
more John Deere X585 specifications...






Engine Detail:

The Deere sales manual shows the FD671 being used until serial number 30001 in 2004. The X585 parts manual shows a FD750. These engines share the same basic specifications.
 Kawasaki FD671D-DFI
 gasoline
 2-cylinder
 liquid-cooled horizontal-shaft V-Twin
 745 cc [45.5ci ]
Bore/Stroke:3.07x3.07 inches [78 x 78 mm]
Power:25 hp [18.6 kW]
Fuel system:fuel injected
Air cleaner:paper with foam precleaner
Compression:8.0:1
Rated RPM:3550
Torque:36.1 lb-ft [49.0 Nm]
Torque RPM:2000
Starter volts:12
Coolant capacity:3 qts [2.8 L]

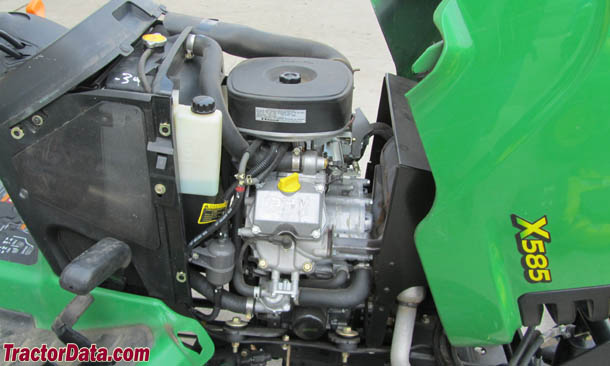

John Deere X585  engine photo



Engine Detail:

 Kawasaki FD711D
 gasoline
 2-cylinder
 liquid-cooled
 745 cc [45.5ci ]
Bore/Stroke:3.07x3.07 inches [78 x 78 mm]
Power:25 hp [18.6 kW]
Air cleaner:dual paper element
Compression:8.0:1
Rated RPM:3550
Idle RPM:1600-3550
Torque:36.1 lb-ft [49.0 Nm]
Torque RPM:2000
Starter power:1.1 hp [0.8 kW]
Oil capacity:1.9 qts [1.8 L]
Coolant capacity:4.2 qts [4.0 L]
