    John Deere X500 - engine

    John Deere X500 lawn tractor photo
    2006 - 2014   Select X500 Series
    Model years
    Garden tractor
    more John Deere X500 specifications...






    Engine Detail:

     Kawasaki FH721V
     gasoline
     2-cylinder
     air-cooled
     675 cc [41.2ci ]
    Bore/Stroke:2.96x2.99 inches [75 x 76 mm]
    Power:25 hp [18.6 kW]
    Fuel system:carburetor
    Starter volts:12
    Oil capacity:2 qts [1.9 L]
    Sparkplug gap:0.030 inches [0.762 mm]
    Intake valve clearance:0.004 inches [0.102 mm] (cold)
    Exhaust valve clearance:0.004 inches [0.102 mm] (cold)

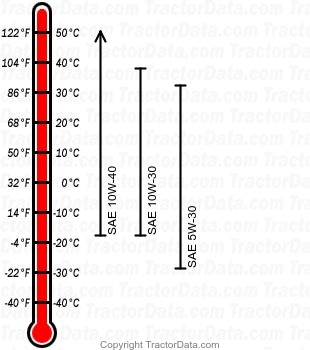

    X500 gasoline engine oil chart
