John Deere LX289 Engine


John Deere LX289 tractor photo
2004 - 2005
LX200 Series
Lawn tractor
Series map:
LX280
LX289
18.0hp
17.0hp
Engine Detail
Kawasaki FD501V
gasoline
2-cylinder
liquid-cooled vertical-shaft V-Twin
Displacement501 cc
30.6 ci
Bore/Stroke2.64x2.80 inches
67 x 71 mm
Power (gross)17 hp
12.7 kW
Air cleanerpaper and foam elements
Starter volts12
Coolant capacity2.8 qts
2.6 L
Sparkplug gap0.028 inches
0.711 mm
Intake valve clearance0.006 inches (cold)
0.152 mm
Exhaust valve clearance0.006 inches (cold)
0.152 mm
Engine Oil

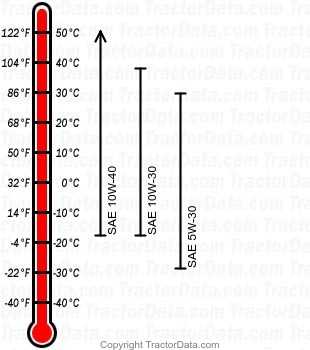

LX289 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L

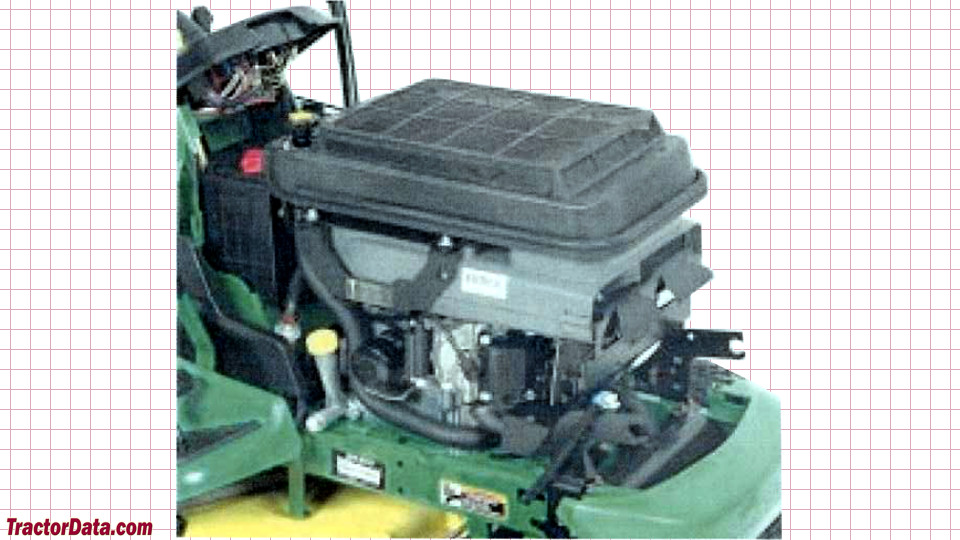

John Deere LX289 Engine
John Deere LX289 engine image
