Lawn Tractors > John Deere > LT166

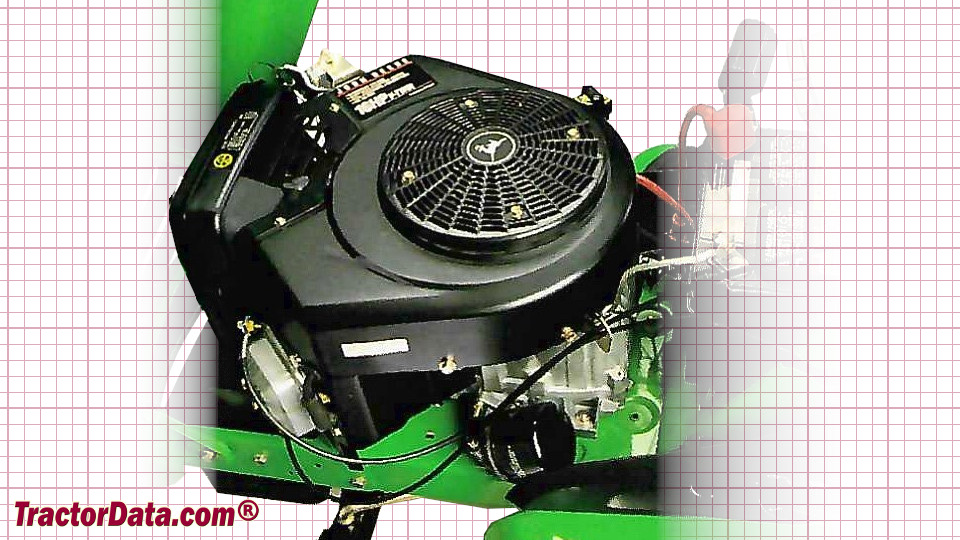

John Deere LT166 Engine



John Deere LT166 lawn tractor photo
1998 - 2001
LT Series
Lawn tractor
Series map:
LT155
LT166
15.0hp
16.0hp
Engine Detail
Briggs & Stratton 303777
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement480 cc
29.3 ci
Bore/Stroke2.68x2.60 inches
68 x 66 mm
Power16 hp
11.9 kW
Starterelectric
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

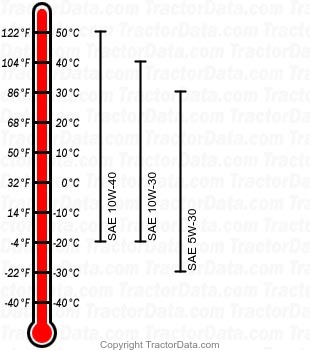

LT166 gasoline engine oil chart
Oil capacity1.6 qts
1.5 L
