John Deere LT133 Engine


John Deere LT133 lawn tractor photo
1998 - 2001
LT Series
Lawn tractor
Series map:
LT133
LT155
13.0hp
15.0hp
Engine Detail
Kohler CV13S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement398 cc
24.3 ci
Bore/Stroke3.425x2.638 inches
87 x 67 mm
Power13 hp
9.7 kW
Starterelectric
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

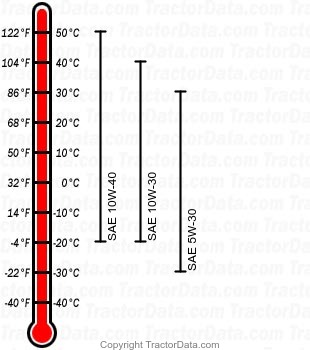

LT133 gasoline engine oil chart
Oil capacity1.9 qts
1.8 L
