John Deere L118 Engine


John Deere L118 tractor photo
2004 - 2005
L100 Series
Lawn tractor
Series map:
L111
L118
L120
20.0hp
20.0hp
20.0hp
Engine options
20HP Briggs & Stratton 655cc 2-cyl gasoline
22HP Briggs & Stratton 655cc 2-cyl gasoline
Engine Detail
Briggs & Stratton CV40
gasoline
2-cylinder
air-cooled vertical shaft V-Twin
The 20 horsepower CV40 was used in 2003 and 2004, to serial number 150001.
Displacement655 cc
40 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power (gross)20 hp
14.9 kW
Air cleanerreplaceable foam
Starterelectric
Starter volts12
Sparkplug gap0.040 inches
1.016 mm
Engine Oil

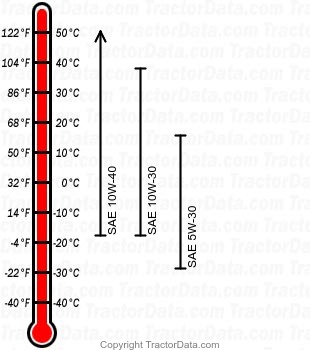

L118 gasoline engine oil chart
Oil capacity2 qts
1.9 L
Engine Detail
Briggs & Stratton 407777
gasoline
2-cylinder
air-cooled vertical shaft V-Twin
The 22 horsepower engine was used in 2005, the final production year.
Displacement655 cc
40 ci
Bore/Stroke2.97x2.89 inches
75 x 73 mm
Power (gross)22 hp
16.4 kW
Air cleanerreplaceable foam
Sparkplug gap0.030 inches
0.762 mm
Point gap0.010 inches
0.254 mm
Intake valve clearance0.005 inches
0.127 mm
Exhaust valve clearance0.010 inches
0.254 mm
Engine Oil
L118 gasoline engine oil chart
Oil capacity2 qts
1.9 L
