Lawn Tractors > John Deere > GX345

John Deere GX345 Transmission



John Deere GX345 lawn tractor photo
2002 - 2005
GX300 Series
Garden tractor
Series map:
GX335
GX345
GX355
20.0hp
20.0hp
18.0hp
Transmission
TransmissionTuff Torq K71
Typebelt-driven hydrostatic
Gearsinfinite forward and reverse
Oil capacity5.0 qts
4.7 L
Oil type
Low-viscosity Hy-Gard
Speeds
GX345 K71 belt-driven hydrostatic speeds

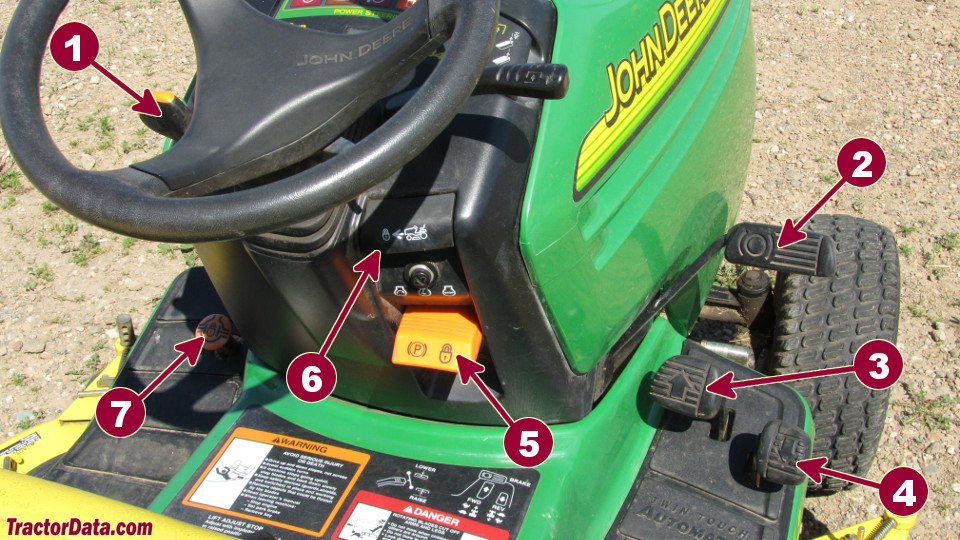

GX345 Transmission Controls
John Deere GX345 transmission controls
1Throttle
2Brake
3Forward
4Reverse
5Parking brake
6Cruise control
7Differential lock
