John Deere 430 Transmission


John Deere 430 lawn tractor photo
1984 - 1992
400 Series
Garden tractor
Series map:
420
430
20.0hp
20.0hp
Transmission
TransmissionSundstrand Series 15 Model 90
Typeshaft-driven hydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity7.5 qts
7.1 L
Oil change200 h
Speeds

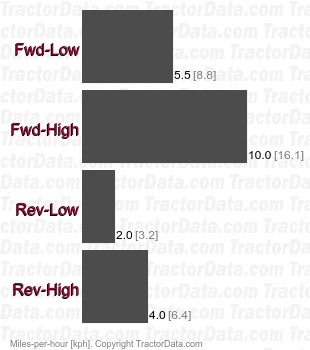

430 Series 15 Model 90 shaft-driven hydrostatic speeds
John Deere 430 Transmission
John Deere 430 transmission image
