John Deere 332 Attachments


John Deere 332 lawn tractor photo
1987 - 1992
300 Series
Garden tractor
Series map:
322
332
18.0hp
16.0hp
Attachment overview

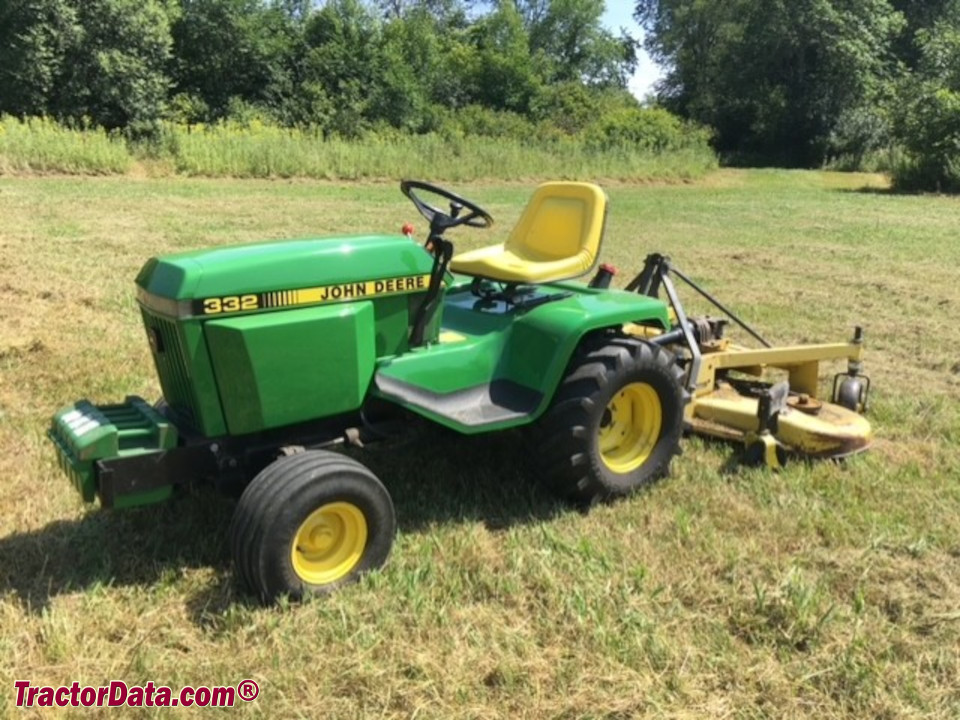

38" mid-mount mower deck
46" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade

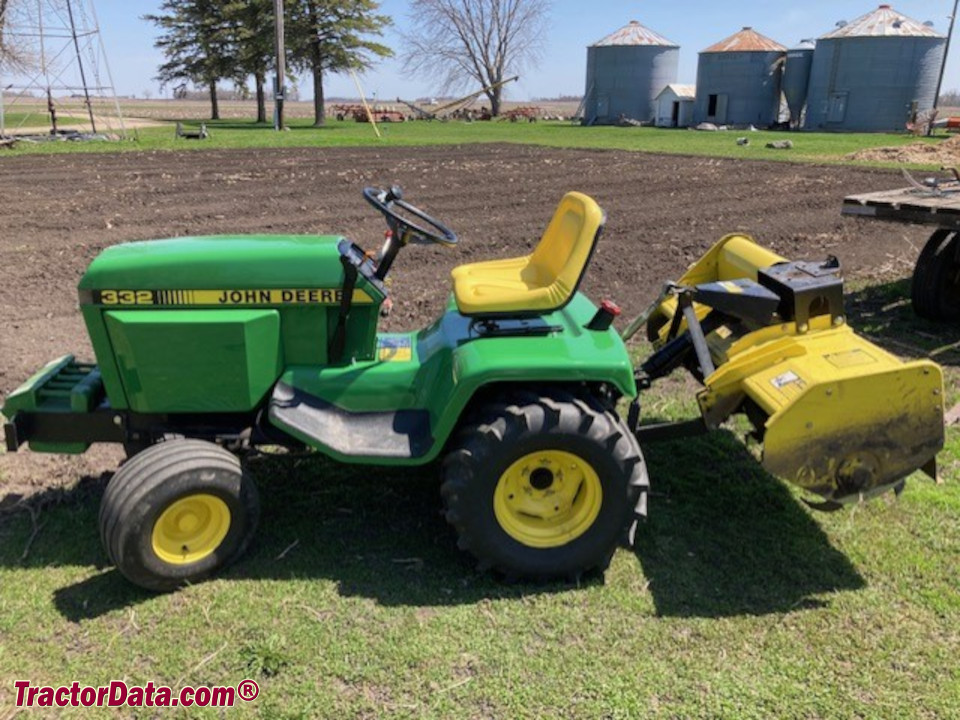

Two tillers were available for the 332, a 48-inch shaft drive and a 30-inch hydraulic tiller (optional extension to 42 inch). The shaft-drive tiller required the optional 2000 RPM rear PTO. The hydraulic tiller operated off a separate hydraulic pump that was belt-driven in place of the mower deck.
38" Mower deck
John Deere
38 inches
96 cm
Total width: 49.7 inches
126 cm
2-blade
hydraulic lift
Cut height: 1 to 4 inch
2 to 10 cm
100 lbs
45 kg
46" Mower deck
John Deere
46 inches
116 cm
Total width: 57 inches
144 cm
3-blade
hydraulic lift
Cut height: 1.5 to 5 inch
3 to 12 cm
116 lbs
52 kg
50" Mower deck
John Deere
50 inches
127 cm
Total width: 68 inches
172 cm
3-blade
hydraulic lift
Cut height: 1.5 to 4 inch
3 to 10 cm
186 lbs
84 kg

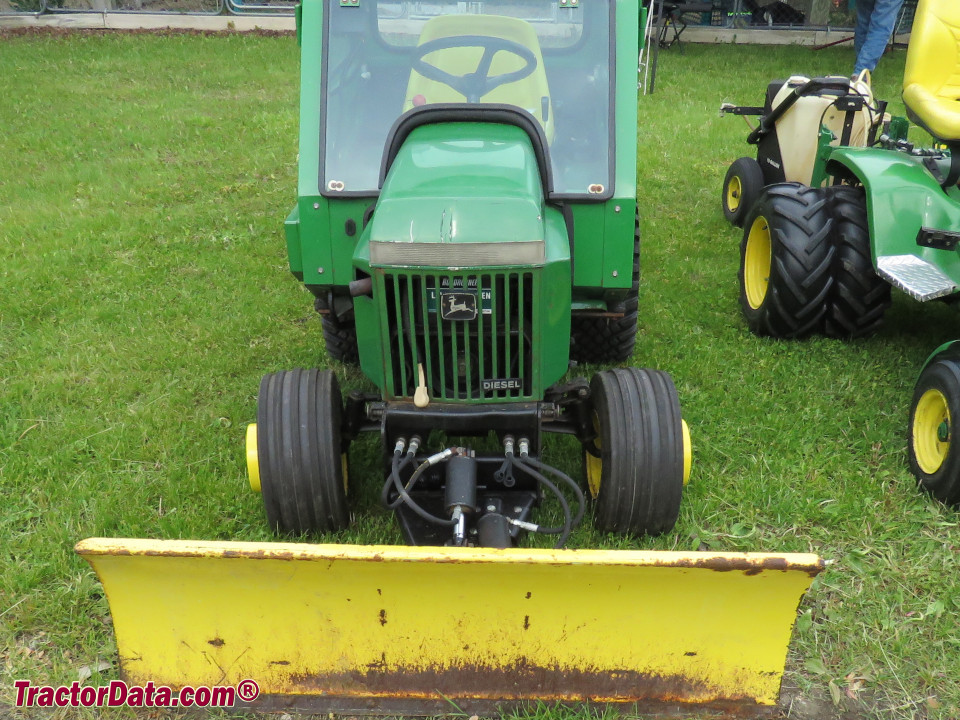

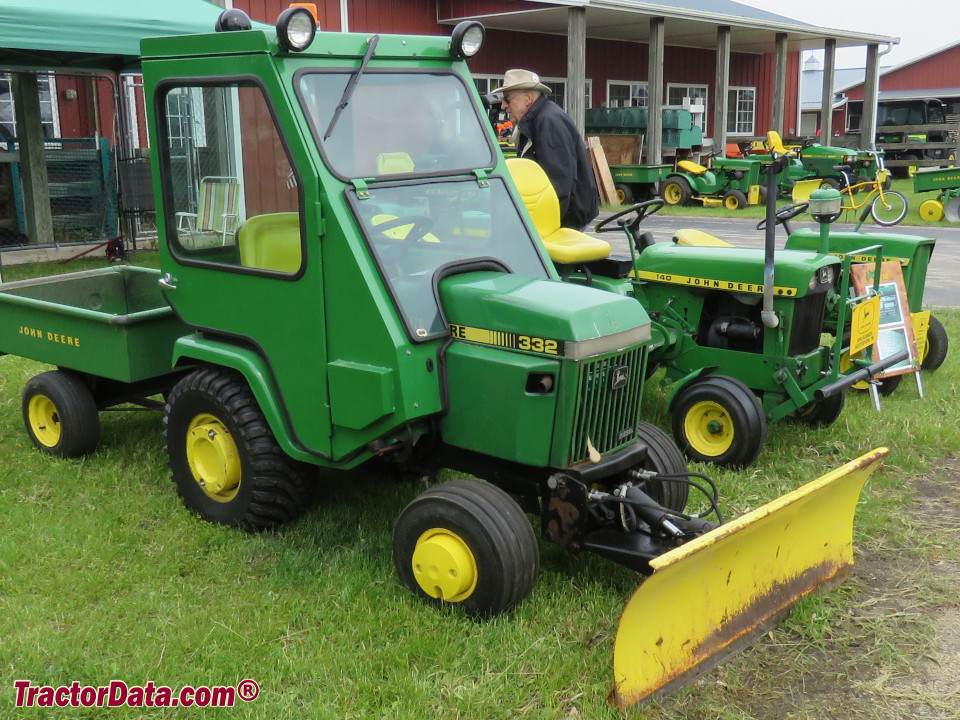

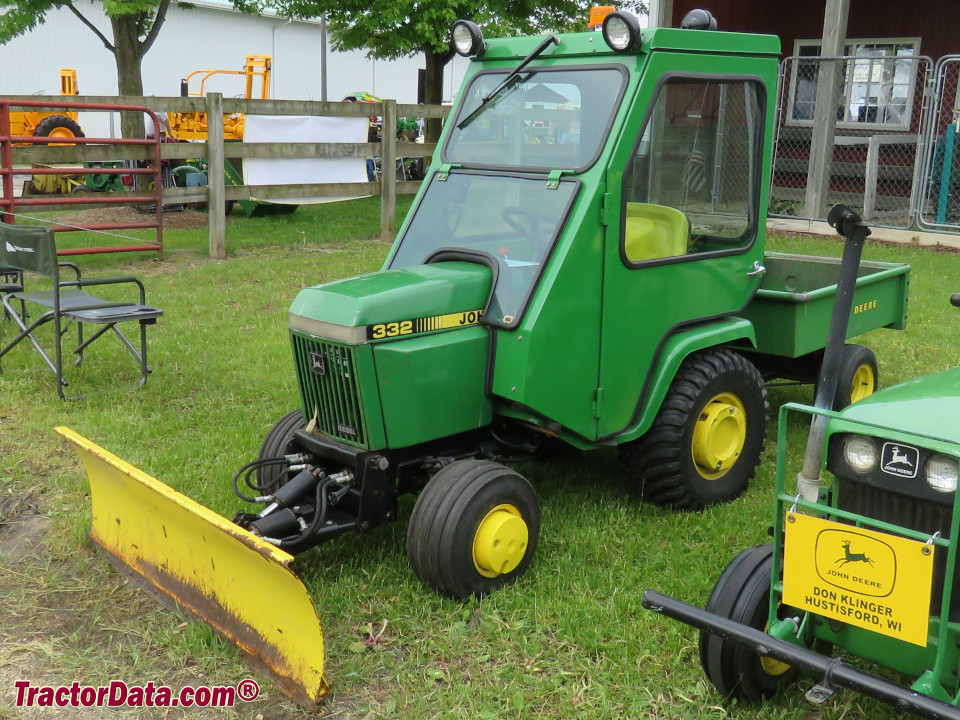

54" Blade
John Deere 0611M
front-mount
54 inches width
137 cm
18 inches height
45 cm
12 inches lift
30 cm
3.5 inches cut
8 cm
hydraulic-lift
manual-angle
hydraulic -angleOptOptional

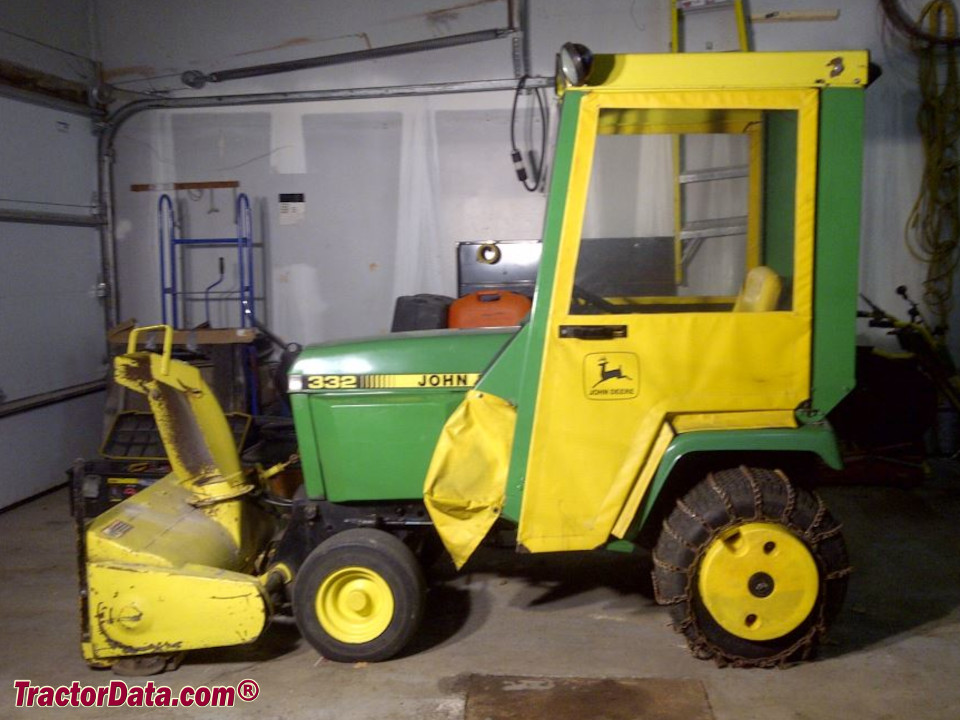

46" Snow blower
John Deere 49 0603M
46 inches width
116 cm
single-stage
front-mount
hydraulic-lift
200 lbs
90 kg
47" Snow blower
John Deere 47 2752M
47 inches width
119 cm
dual-stage
Clear height:23 inches
58 cm
front-mount
hydraulic-lift
400 lbs
181 kg
