| | 1988 - 1992 |
| Late 200 Series | | Garden tractor |
|
Series map:
240
245
14.0hp
14.0hp
| Engine Detail |
| Kawasaki FC420V |
| gasoline |
| 1-cylinder |
| air-cooled vertical-shaft |
| Displacement | 422 cc
25.8 ci
|
| Bore/Stroke | 3.5x2.7 inches
89 x 69 mm
|
| Power (gross) | 14 hp
10.4 kW
|
| Air cleaner | dry with foam pre-cleaner
|
| Compression | 8.4:1
|
| Rated RPM | 3350
|
| Starter volts | 12
|

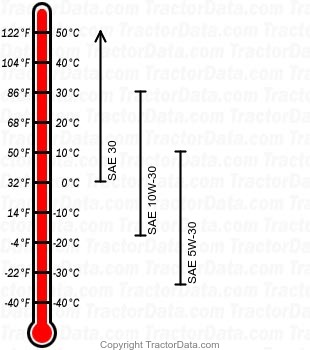

| Engine Oil |
|
| Oil capacity | 1.25 qts
1.2 L
|
| Oil change | 50 h
|
