| | 1979 - 1987 |
| 200 Series | | Garden tractor |
|
Series map:
214
216
14.0hp
16.0hp
| Engine Detail |
| Kohler K341AQS |
| gasoline |
| 1-cylinder |
| air-cooled horizontal-shaft |
| Displacement | 588 cc
35.9 ci
|
| Bore/Stroke | 3.75x3.25 inches
95 x 83 mm
|
| Power (gross) | 16 hp
11.9 kW
|
| Air cleaner | dry
|
| Idle RPM | 1700-3500
|
| Starter volts | 12
|

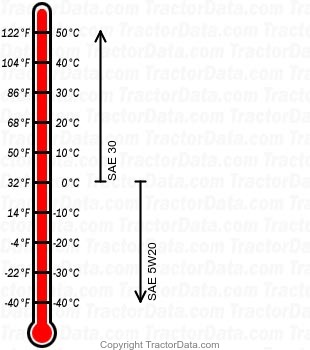

| Engine Oil |
|
| Oil capacity | 1.5 qts
1.4 L
|
| Oil change | 25 h
|

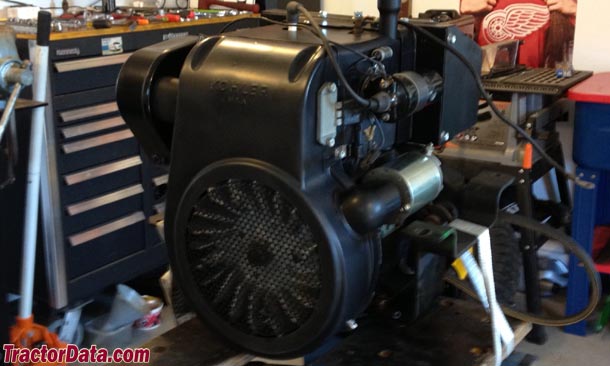

| John Deere 216 Engine |
 |
| Image courtesy of Ryan Grierson |
