Lawn Tractors > John Deere > 100

John Deere 100 Transmission



John Deere 100 lawn tractor photo
1975 - 1978
Lawn tractor
Series map:
100
8.0hp
Transmission
TransmissionPeerless 1200
Typebelt-driven gear
Gears3 forward and 1 reverse
Oil capacity1.5 qts
1.4 L
Oil type
80W90 GL5
Oil change500 h

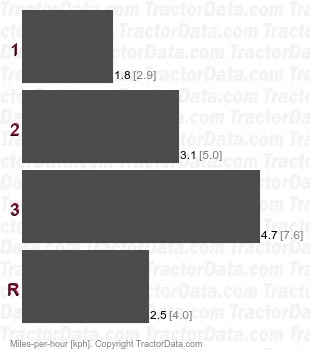

Speeds
100 1200 belt-driven gear speeds

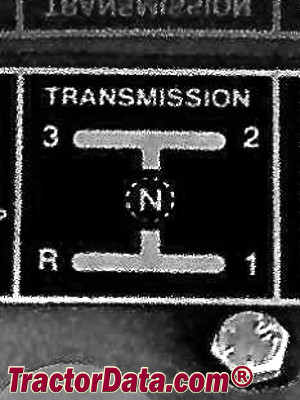

Shift Pattern
John Deere 100 transmission controls
