J.I. Case W-3 Engine
|
|
| Engines overview | |
| J.I. Case 2.6L 4-cyl gasoline | |
| J.I. Case 3.1L 4-cyl diesel |
| Engine Detail | |
| J.I. Case G159 | |
| gasoline | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement | 159 ci 2.6 L |
| Bore/Stroke | 3.50x4.125 inches 89 x 105 mm |
| Power | 52 hp 38.8 kW |
| Fuel system | carburetor |
| Compression | 7.42:1 |
| Rated RPM | 2100 |
| Idle RPM | 500-2300 |
| Firing order | 1-3-4-2 |
| Starter | electric |
| Starter volts | 12 |
| Coolant capacity | 14 qts 13.2 L |
| Sparkplug | Champion D16 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.020 inches 0.508 mm |
| Intake valve clearance | 0.014 inches*Cold 0.356 mm |
| Exhaust valve clearance | 0.014 inches*Cold 0.356 mm |

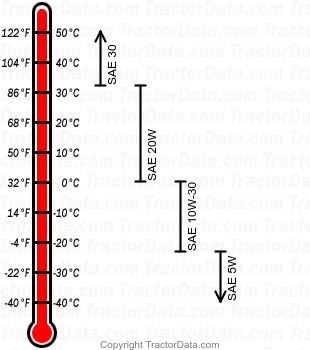

| Engine Oil | |
| |
| Oil capacity | 5 qts 4.7 L |
| Oil change | 100 h |
| Engine Detail | |
| J.I. Case | |
| diesel | |
| 4-cylinder | |
| Displacement | 188 ci 3.1 L |
| Bore/Stroke | 3.8125x4.125 inches 97 x 105 mm |
| Rated RPM | 2100 |
