International Harvester 500 Transmission
|
|
| Transmissions overview | |
| 8-speed partial power shift | |
| 5-speed unsynchronized gear | |
| 5-speed power shuttle |
| Transmission | |
| Transmission | International Harvester Torque Amplifier |
| Type | partial power shift |
| Gears | 8 forward and 2 reverse |
| Clutch | 10-inch dry disc |
| Oil capacity | 13.2 qts 12.5 L |
| The IH Torque Amplifier adds a shift-on-the-move underdrive to the basic gear transmission. | |
| Speeds | |
|
| Transmission | |
| Transmission | International Harvester |
| Type | unsynchronized gear |
| Gears | 5 forward and 1 reverse |
| Clutch | 10-inch dry disc |
| Oil capacity | 13.2 qts 12.5 L |

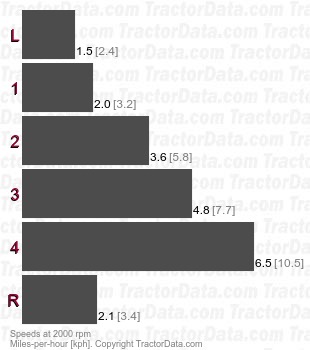

| Speeds | |
|
| Transmission | |
| Transmission | International Harvester Power-Shift Reverser |
| Type | power shuttle |
| Gears | 5 forward and reverse |
| Clutch | 10-inch dry disc |
| Oil capacity | 13.2 qts 12.5 L |

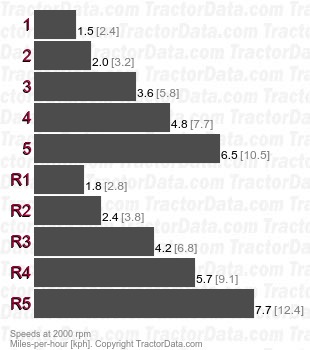

| Speeds | |
| Optional fast reverse speeds shown. Also available with 1-to-1 ratio where reverse speeds are the same as forward. | |
|
