Ford 3400 Transmission


Ford 3400 industrial tractor photo
1965 - 1975
Industrial tractor
Transmissions overview
4-speed gear
6-speed gear
6-speed mechanical shuttle
8-speed gear
12-speed gear
10-speed full power shift
Transmission
Typegear
Gears4 forward and 1 reverse
Clutchdry disc
Speeds
3400  gear speeds

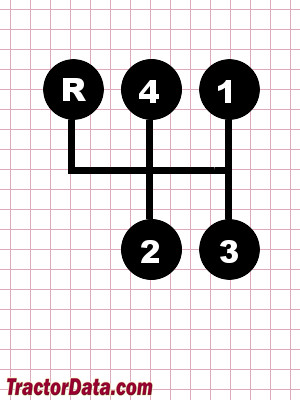

Shift Pattern
Ford 3400 transmission controls
Transmission
Typegear
Gears6 forward and 2 reverse
Clutchdry disc
Oil capacity14.4 qts
13.6 L
Speeds
With 28-inch rear tires.
3400  gear speeds
Transmission
TransmissionManual Reversing
Typemechanical shuttle
Gears6 forward and 4 reverse
Clutchdry disc
Oil capacity13.8 qts
13.1 L
Three speeds forward, two reverse, in two ranges.
Speeds
With 28-inch rear tires.

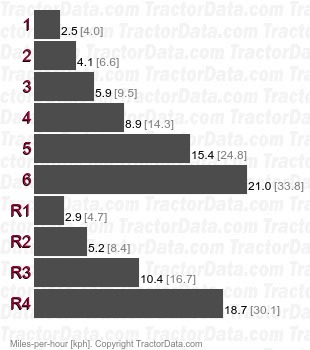

3400 Manual Reversing mechanical shuttle speeds

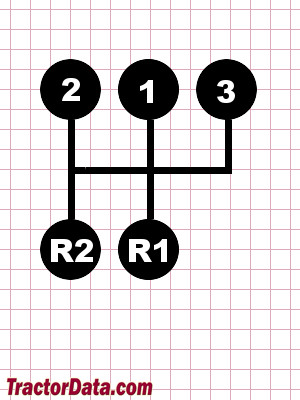

Shift Pattern
Ford 3400 transmission controls
Transmission
TransmissionDual Range
Typegear
Gears8 forward and 2 reverse
Oil capacity13.2 qts
12.5 L
Four gears, plus reverse, in two ranges.
Speeds
With 28-inch rear tires.
3400 Dual Range gear speeds
Shift Pattern
Ford 3400 transmission controls
Transmission
TransmissionOver-Under
Typegear
Gears12 forward and 3 reverse
Oil capacity7 qts
6.6 L
The over-under auxiliary gearbox provides two additional speed ranges to the basic four-speed transmission.
Speeds

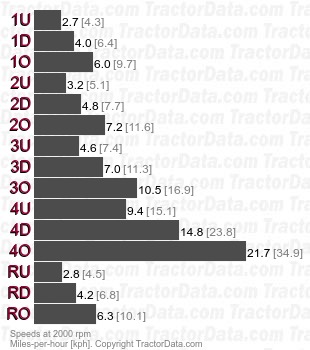

3400 Over-Under gear speeds

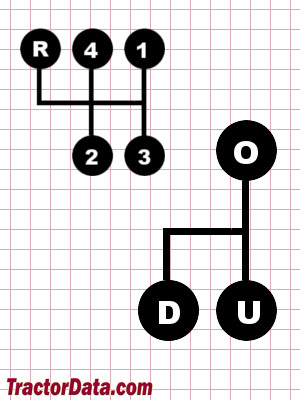

Shift Pattern
Ford 3400 transmission controls
Transmission
TransmissionSelect-O-Speed
Typefull power shift
Gears10 forward and 2 reverse
Oil capacity12 qts
11.4 L
Speeds
With 28-inch rear tires.
3400 Select-O-Speed full power shift speeds
