J.I. Case 480D Transmission


J.I. Case 480D industrial tractor photo
1980 - 1987
Industrial tractor
480C
Series:480D
480E LL
Transmission
Typepower shuttle
Gears4 forward and reverse
Oil capacity20 qts (tansaxle)
18.9 L
 8 qts (shuttle)
7.6 L
Four-speed partially synchronized transmission with power shuttle and torque converter. Synchronized up-shift from 2nd to 3rd and from 3rd to 4th. Synchronized down-shift from 4th to 3rd.
Speeds
With 14.9x24 rear tires.

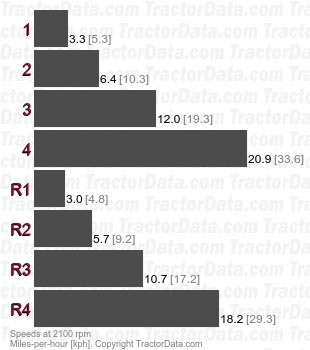

480D  power shuttle speeds
