Allis Chalmers I40 Transmission
|
|
| Series: | I40 |
| I400 ↓ |
| Transmissions overview | |
| 4-speed gear | |
| 4-speed shuttle | |
| 8-speed |
| Transmission | |
| Type | gear |
| Gears | 4 forward and 1 reverse |
| Clutch | 228.6mm dry disc |
| Oil capacity | 6.5 qts 6.2 L |

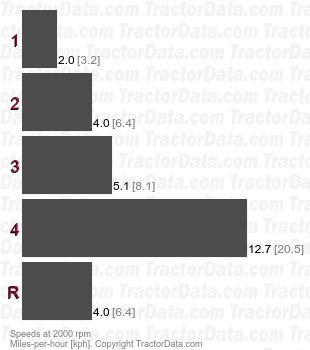

| Speeds | |
| With 14.9x24 rear tires. | |
|
| Transmission | |
| Transmission | Direction Reverser |
| Type | shuttle |
| Gears | 4 forward and reverse |
| Oil capacity | 8 qts 7.6 L |
| Speeds | |
| With 14.9x24 rear tires. | |
|
| Transmission | |
| Transmission | Dual Range |
| Gears | 8 forward and 2 reverse |
| Oil capacity | 8 qts 7.6 L |

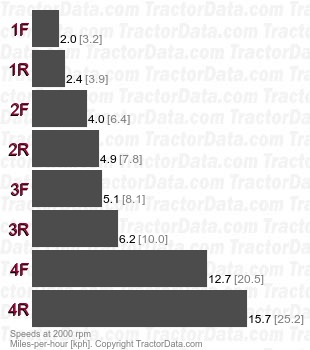

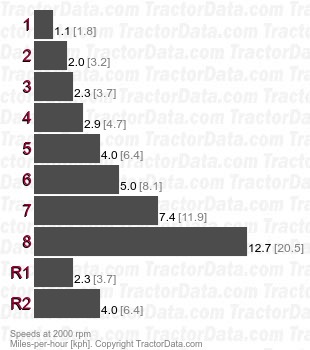

| Speeds | |
| With 14.9x24 rear tires. | |
|
