Tractors > International Harvester > 3616

International Harvester 3616 Engine



International Harvester 3616 industrial tractor photo
1965 - 1971
Industrial tractor
Engines overview
International Harvester 3.9L 6-cyl diesel
International Harvester 3.6L 6-cyl gasoline
Engine Detail
International Harvester D-236
diesel
6-cylinder
liquid-cooled
Displacement236 ci
3.9 L
Bore/Stroke3.6875x3.6875 inches
94 x 94 mm
Gear Power66 hp
49.2 kW
Hydro Power70 hp
52.2 kW
Air cleanerdry type
Gear Rated RPM2000
Hydro Rated RPM2200
Starterelectric
Starter volts12
Coolant capacity23 qts
21.8 L
Intake valve clearance0.027 inches*Hot
0.686 mm
Exhaust valve clearance0.027 inches*Hot
0.686 mm
Engine Oil

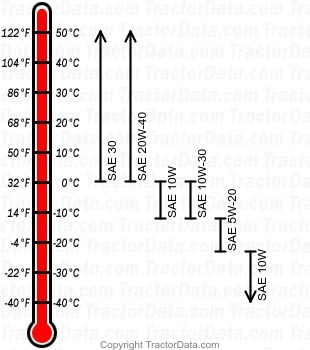

3616 diesel engine oil chart
Oil capacity9 qts
8.5 L
Engine Detail
International Harvester C-221
gasoline
6-cylinder
liquid-cooled
Displacement221 ci
3.6 L
Bore/Stroke3.5625x3.6875 inches
90 x 94 mm
Gear Power66 hp
49.2 kW
Hydro Power70 hp
52.2 kW
Air cleanerdry type
Gear Rated RPM2000
Hydro Rated RPM2200
Firing order1-5-3-6-2-4
Starterelectric
Starter volts12
Coolant capacity20.5 qts
19.4 L
Sparkplug gap0.023 inches
0.584 mm
Point gap0.020 inches
0.508 mm
Intake valve clearance0.027 inches*Hot
0.686 mm
Exhaust valve clearance0.027 inches*Hot
0.686 mm
Engine Oil

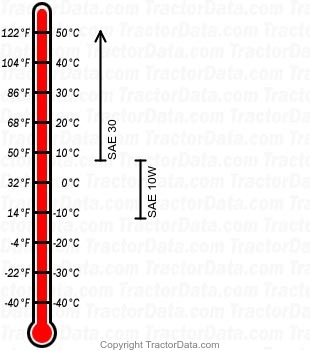

3616 gasoline engine oil chart
Oil capacity9 qts
8.5 L
