| | 1965 - 1972 |
| Industrial tractor |
|
| Transmissions overview |
| 5-speed |
| 4-speed |
| Transmission |
| Transmission | hydrostatic
|
| Gears | 5 forward and 2 reverse
|
| Oil capacity | 52 qts
49.2 L
|

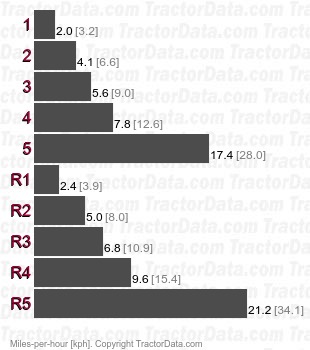

| Speeds |
| With 14.9-28 rear tires. |
|
| Transmission |
| Transmission | Forward and Reverse Drive
|
| Gears | 5 forward and reverse
|
| Oil capacity | 52 qts
49.2 L
|
| Five gears with forward and reverse. |
| Speeds |
| With 14.9-28 rear tires. |
|
| Transmission |
| Transmission | Torque Converter
|
| Gears | 4 forward and reverse
|
| Oil capacity | 52 qts
49.2 L
|
| Torque converter allows for forward-reverse shifts without using the clutch. |

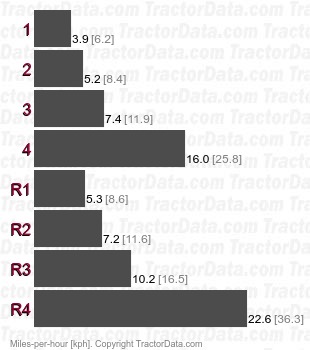

| Speeds |
| With 14.9-28 rear tires. |
|
