| | 1963 - 1967 |
| Industrial tractor |
|
| Transmissions overview |
| 8-speed |
| 16-speed partial power shift |

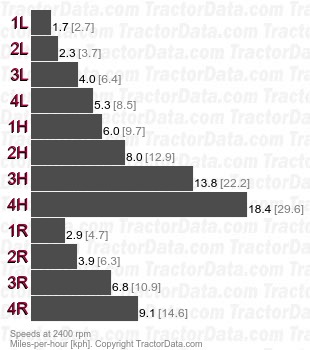

| Transmission |
| Gears | 8 forward and 4 reverse
|
| Oil capacity | 17 qts
16.1 L
|
| Four gears in low, high, and reverse ranges. |
| Speeds |
| With 23.1-30 R4 rear tires. |
|

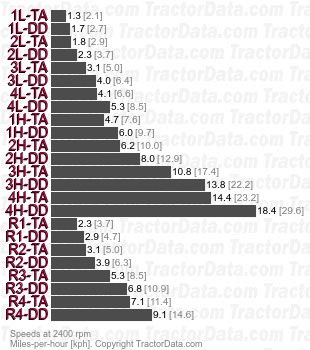

| Transmission |
| Transmission | International Harvester Torque Amplifier
|
| Type | partial power shift
|
| Gears | 16 forward and 8 reverse
|
| Oil capacity | 17 qts
16.1 L
|
| The Torque Amplifier (TA) adds a power shift between direct-drive (DD) and the lower TA range for each gear. |
| Speeds |
| With 23.1-30 R4 rear tires. |
|
