| | 1963 - 1967 |
| Industrial tractor |
|
Series map:
2606
2706
2806
66.0hp
84.4hp
114.0hp
| Transmissions overview |
| 8-speed unsynchronized gear |
| 16-speed partial power shift |
| Transmission |
| Type | unsynchronized gear
|
| Gears | 8 forward and 4 reverse
|
| Clutch | 12-inch dry disc
|
| Four gears (1-4) in two ranges (low/high). |

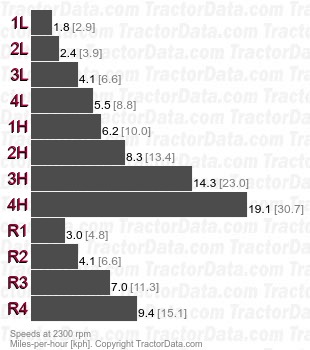

| Speeds |
| With 23.1-30 R4 rear tires. |
|
| Transmission |
| Transmission | International Harvester Torque Amplifier
|
| Type | partial power shift
|
| Gears | 16 forward and 8 reverse
|
| Clutch | 12-inch dry disc
|

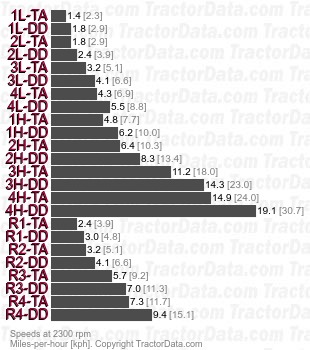

| Speeds |
| With 23.1-30 R4 rear tires. |
|
