| 1998 - 2001 |
TNF Series | Orchard/Vineyard tractor |
|
Transmissions overview |
16-speed partially synchronized |
32-speed two-speed power shift |
Transmission |
Type: | partially synchronized
|
Gears: | 16 forward and reverse
|
Clutch: | 279.4mm dry disc
|
Oil capacity: | 46.5 qts 44.0 L
|
Four synchronized gears (1-4) in four ranges. Tractor must be stopped (and clutch used) to shift range. Mechanical shuttle lever. |
Speeds |
With 420/70R28 rear tires and 30 KPH transmission. |
|
Transmission |
Manufacturer: | Dual Command
|
Type: | two-speed power shift
|
Gears: | 32 forward and 16 reverse
|
Oil capacity: | 58.1 qts 55.0 L
|
Four synchronized gears (1-4) in four ranges with two-speed push-button power shift and left-hand power shuttle. Push-button power shift only applies to forward speeds. |

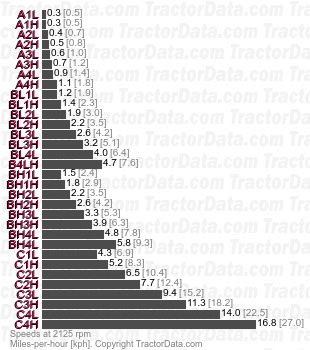

Speeds |
With 420/70R28 rear tires and 30 KPH transmission. |
|
