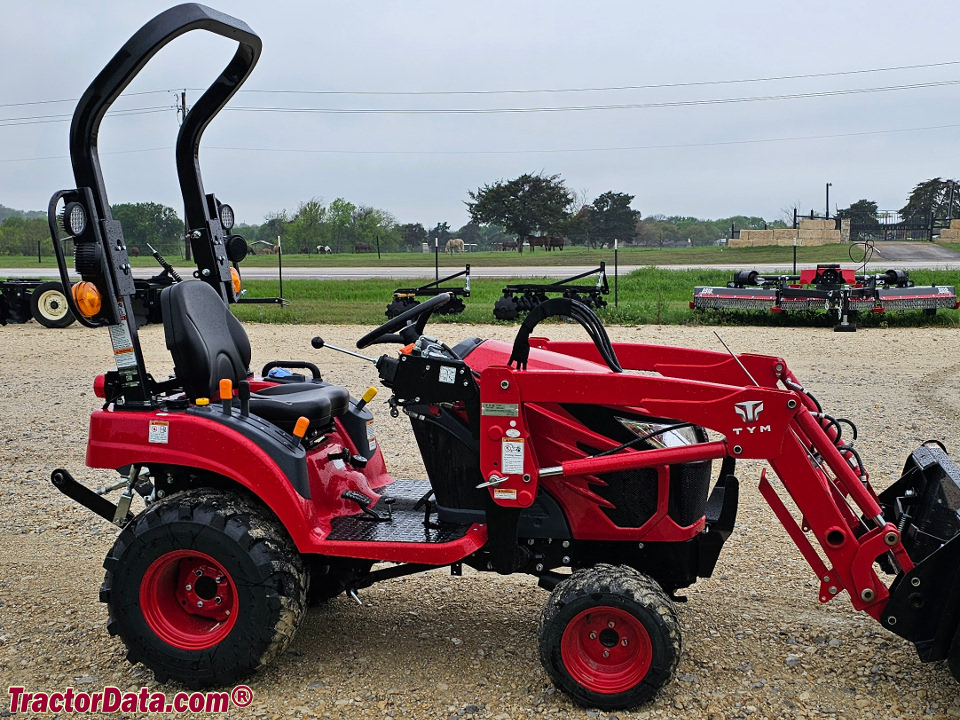

TYM T224
|
|
| Production | |
| Manufacturer | TYM |
| Compact Utility tractor | |
| TYM T224 Engine | |
| Yanmar 1.0L 3-cyl diesel | |
| Fuel tank | 6.6 gal 25.0 L |
 Engine details ... | |
| TYM T224 Transmission | |
| hydrostatic | |
 Transmission details ... |
| TYM T224 Power | |
| Engine (gross) | 21.5 hp 16.0 kW |
| Mechanical | |
| Power steering | |
| Wet disc brakes | |
| Two-post folding ROPS. |
| Photos | |
| No photos of the TYM T224 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | open center |
| Pump flow | 4.17 gpm 15.8 lpm |
| Total flow | 6.97 gpm 26.4 lpm |
| Steering flow | 2.11 gpm 8.0 lpm |
| Tractor hitch | |
| Rear Type | I |
| Control | position control |
| Rear lift (at ends) | 1100 lbs 498 kg |
| Rear lift (at 24"/610mm) | 679 lbs 307 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 (1.375) |
| Mid PTO | independent |
| Mid PTO Type | 2500 |
| Dimensions & Tires | |
| Wheelbase | 53.1 inches 134 cm |
| Weight | 1433 lbs 650 kg |
| Front tire | 16x7.50-9 |
| Rear tire | 24x12.00-12 |
 Full dimensions and tires ... | |
| TYM T224 attachments | |
| 48" mid-mount mower deck | |
| 54" mid-mount mower deck | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging amps | 40 |
| Battery volts | 12 |
| References | |
 | |
| Operator's Manual for Tractor T224 published in 2019 |
