| 2002 - 2006 |
|
400 Series | Utility tractor |
|
Transmissions overview |
8-speed gear |
8-speed partially synchronized |
Transmission |
Type: | gear
|
Gears: | 8 forward and 2 reverse
|
Clutch: | 305mm dry disc
|
Oil capacity: | 44.4 qts 42.0 L
|
Four gears, plus reverse, in two ranges. |
Transmission |
Type: | partially synchronized
|
Gears: | 8 forward and reverse
|
Clutch: | 305mm dry disc
|
Four synchronized gears in two ranges with left-hand shuttle. |

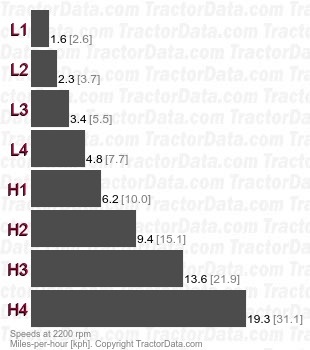

Speeds |
With 16.9x30 rear tires. Reverse speeds are 15% faster than forward. |
|
