Massey Ferguson 471 Transmission


Massey Ferguson 471 tractor photo
2002 - 2006
Model year
400 Series
Utility tractor
Series:451471481
Transmissions overview
8-speed gear
8-speed partially synchronized
Transmission
Type:gear
Gears:8 forward and 2 reverse
Clutch:305mm dry disc
Oil capacity:44.4 qts
42.0 L
Four gears, plus reverse, in two ranges.
Transmission
Type:partially synchronized
Gears:8 forward and reverse
Clutch:305mm dry disc
Four synchronized gears in two ranges with left-hand shuttle.

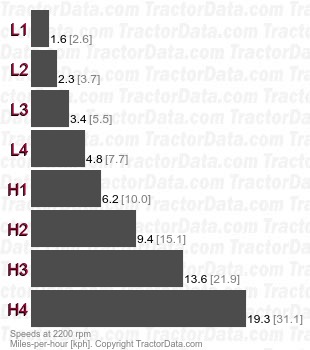

Speeds
With 16.9x30 rear tires. Reverse speeds are 15% faster than forward.
471  partially synchronized speeds
