Tractors > Allis Chalmers > 8050 High-Clearance

Allis Chalmers 8050 High-Clearance Engine



Allis Chalmers 8050 High-Clearance tractor photo
1982 - 1985
8000 Series
High-Clearance tractor
Series map:
8030 High-Clearance
8050 High-Clearance
148.7hp*
169.3hp*
*Estimated engine power for comparison only.
Engine Detail
Allis Chalmers 670I
turbocharged intercooled diesel
6-cylinder
liquid-cooled inline
Displacement426 ci
7.0 L
Bore/Stroke4.25x5.00 inches
108 x 127 mm
Rated RPM2300
Operating RPM750-2580
Starterelectric
Starter volts12
Oil capacity19 qts
18.0 L
Coolant capacity37 qts
35.0 L
Allis Chalmers 8050 High-Clearance Engine

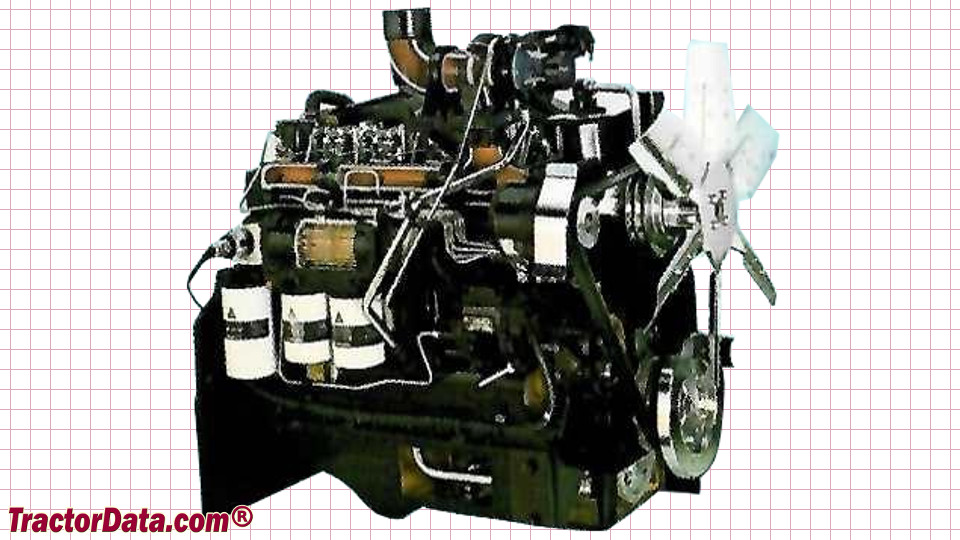

Allis Chalmers 8050 High-Clearance engine image
