Kubota M4-071 Transmission


Kubota M4-071 tractor photo
2019 -
M4 Series
Utility tractor
Series map:
M4-061
M4-071
65.4hp
73.2hp
Transmissions overview
12-speed power shuttle
18-speed creeper
Transmission
Typepower shuttle
Gears12 forward and reverse
Clutchwet disc
Six synchronized gears in two ranges with left-hand hydraulic shuttle. Push-button clutch for gear shifts.
Speeds
With 420/85R30 rear tires.
M4-071  power shuttle speeds
Transmission
Typecreeper
Gears18 forward and reverse
Optional creeper adds an additional range to the standard shuttle transmission.
Speeds
With 420/85R30 rear tires.

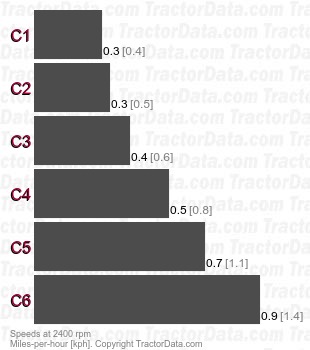

M4-071  creeper speeds
