John Deere 3043D Transmission


John Deere 3043D tractor photo
2019 -
3D Series
Compact Utility tractor
Series:3035D3043D
Transmission
Type:mechanical shuttle
Gears:8 forward and reverse
Clutch:dry disc
Oil capacity:34.8 qts
32.9 L
Four gears in two ranges with left-hand shuttle. Tractor must be stopped, and clutch used, to shift gear, range, or shuttle.

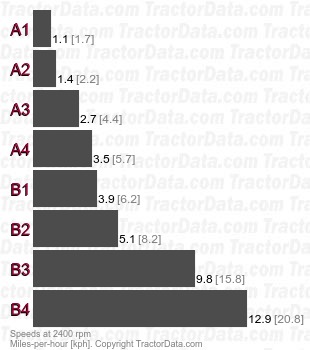

Speeds
With 15x19.5 rear tires. Reverse speeds are 5% faster than forward.
3043D  mechanical shuttle speeds
