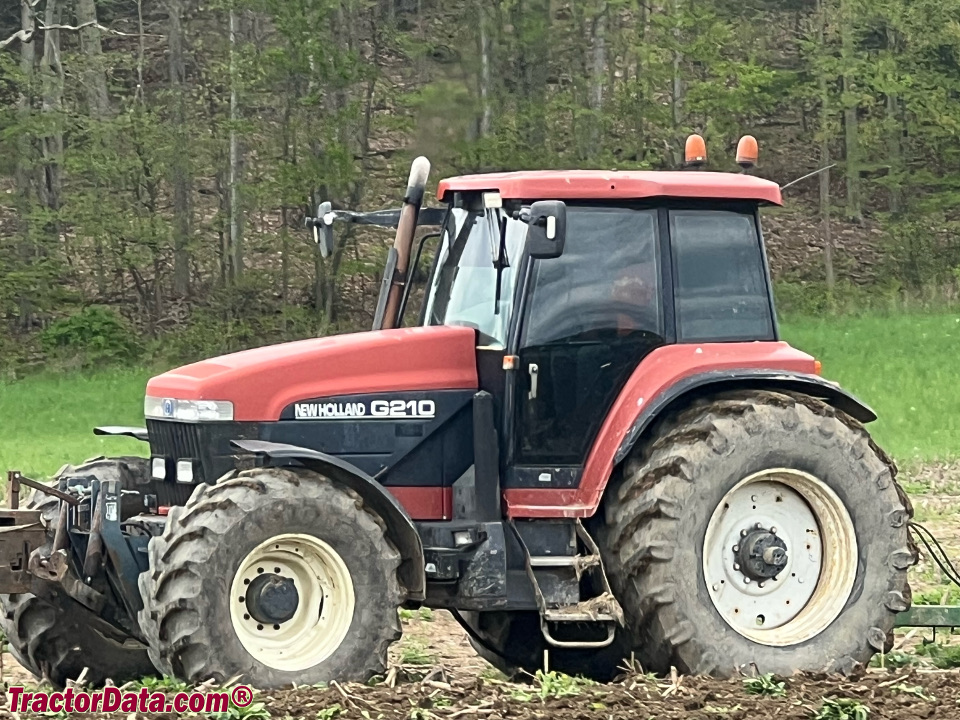

Fiat G210

No photo available
1993 - 2002   G Series
Row-Crop tractor
Series next:Fiat G240
Series back:Fiat G190





Note: the Fiat model G210 is the same as the Ford 8870. The following data is from the 8870 listing.


Production:

Manufacturer:Fiat
Original price (USD):$103,000 (2000)


Fiat G210 Engine:

   Ford 7.5L 6-cyl diesel
full engine details ...


Capacity:

Fuel:110 gal [416.4 L]
Hydraulic system:36.9 gal [139.7 L]
Front hubs:1.7 qts [1.6 L] (each)
Front diff.:13 qts [12.3 L]


3-Point Hitch:

Rear Type:III
Rear lift:12,500 lbs [5670 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:1000


Dimensions & Tires:

Wheelbase:118.3 inches [300 cm]
Weight:16700 to 19000 pounds
Front tire:14L-16.1
Rear tire:18.4R42
full dimensions and tires ...


G210 Serial Numbers:


how to read serial numbers...



Fiat G210 Power:

Engine:210 hp [156.6 kW]
PTO (claimed):180 hp [134.2 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:hydrostatic power
Brakes:wet disc
Cab:Cab standard


Hydraulics:

Type:closed center load sensing
Capacity:36.9 gal [139.7 L]
Pressure:2750 psi [189.6 bar]
Valves:3
Pump flow:24 gpm [90.8 lpm]
Total flow:31 gpm [117.3 lpm]
 55 gpm [208.2 lpm] (MegaFlow optional)


Electrical:

Ground:negative
Charging system:alternator
Charging amps:130


Battery:

Number:2
Cold-cranking amps:950
Volts:12
