Fiat G170 Engine
|
|
| Series: | G170 | → G190 |
Note: the Fiat model G170 is the same as the Ford 8670. The following data is from the 8670 listing. |
| Engine Detail | |
| Ford | |
| turbocharged diesel | |
| 6-cylinder | |
| liquid-cooled | |
| Displacement: | 456 ci 7.5 L |
| Bore/Stroke: | 4.4x5.0 inches 112 x 127 mm |
| Power: | 170 hp 126.8 kW |
| Compression: | 17.5:1 |
| Rated RPM: | 2100 |
| Firing order: | 1-5-3-6-2-4 |
| Starter volts: | 12 |
| Starter power: | 6 hp 4.5 kW |
| Coolant capacity: | 26.4 qts 25.0 L |
| Intake valve clearance: | 0.014 inches 0.356 mm (cold) |
| Exhaust valve clearance: | 0.017 inches 0.432 mm (cold) |

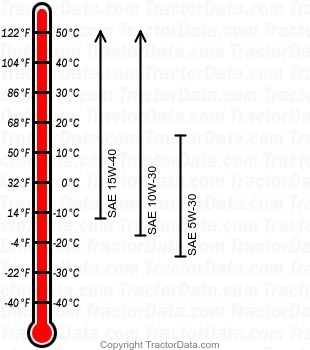

| Engine Oil | |
| |
| Oil capacity: | 22 qts 20.8 L |
