Transmissions overview | |
16-speed synchronized | |
24-speed creeper | |
30-speed | |
45-speed |
Transmission | |
Type: | synchronized |
Gears: | 16 forward and 8 reverse |
Four gears in two ranges with additional high-low. |

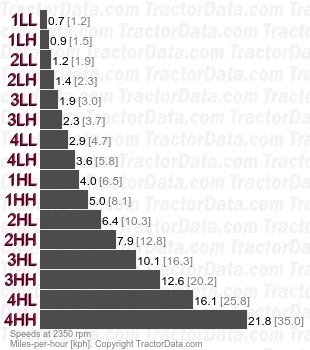

Speeds | |
With 380/70R24 rear tires. | |
Transmission | |
Type: | creeper |
Gears: | 24 forward and 12 reverse |
Optional creeper ranges for the base transmission. |
Transmission | |
Gears: | 30 forward and 15 reverse |
Five gears in three ranges with two-speed shift. |

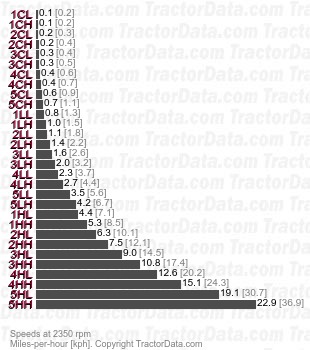

Speeds | |
With 12.4R28 rear tires. | |
Transmission | |
Transmission: | Agroshift |
Gears: | 45 forward and reverse |
Five gears in three ranges with three-speed shift. |
