Tractors > Iseki > TF223

Iseki TF223

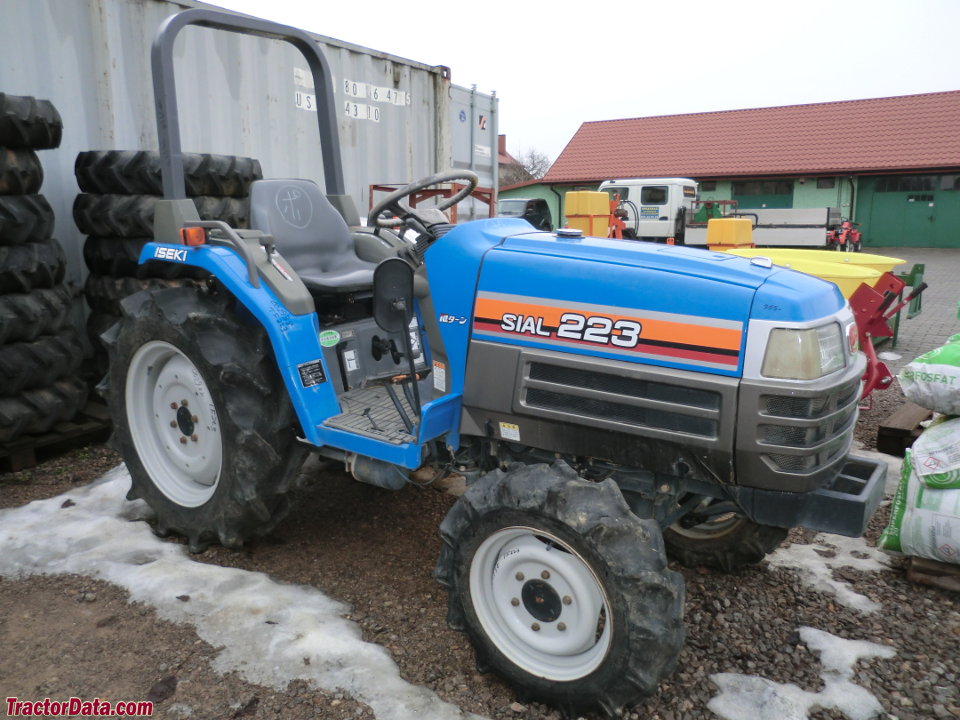

Iseki TF223 tractor photo
TF Series
Compact Utility tractor
Series next:Iseki TF243
Series back:Iseki TF193






Production:

Manufacturer:Iseki


Iseki TF223 Engine:

   1.4L 3-cyl diesel
full engine details ...


Capacity:

Fuel:6.3 gal [23.8 L]


3-Point Hitch:

Rear Type:0


Power Take-off (PTO):

Rear RPM:540 (1.375)
Engine RPM:522@2500
818@2500
1265@2500


Dimensions & Tires:

Wheelbase:61 inches [154 cm]
Weight:1929 lbs [874 kg]
Front tire:6-14
Rear tire:9.5-22
full dimensions and tires ...


TF223 Serial Numbers:


how to read serial numbers...



Iseki TF223 Power:

Engine:21.7 hp [16.2 kW]
PTO (claimed):19.4 hp [14.5 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Cab:Two-post folding ROPS.


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
