Ford 876 Engine


Ford 876 tractor photo
1989 - 1993
800 Series
Four-wheel Drive (4WD) tractor
Series map:
846
876
230.0hp
280.0hp

Note: the Ford model 876 is the same as the Versatile 876. The following data is from the 876 listing.
Engine Detail
Cummins LT10-A280
aftercooled turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement611 ci
10.0 L
Bore/Stroke4.921x5.354 inches
125 x 136 mm
Power280 hp
208.8 kW
Air cleanerdual dry element
Pre-heatingether injection
 block heater
Compression16:1
Rated RPM2100
Torque895 lb-ft
1213.6 Nm
Torque RPM1300
Starter volts12
Oil capacity28 qts
26.5 L
Coolant capacity56.5 qts
53.5 L
Ford 876 Engine

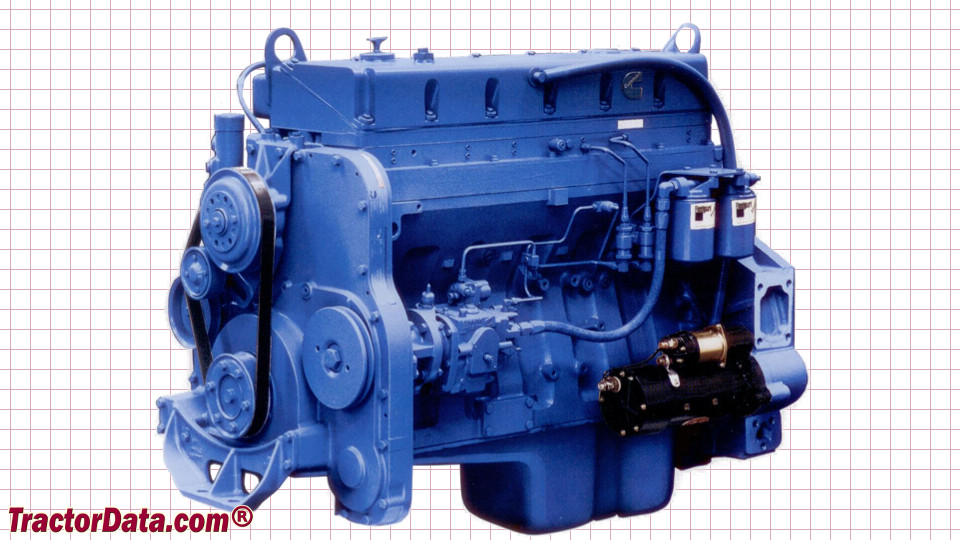

Ford 876 engine image
