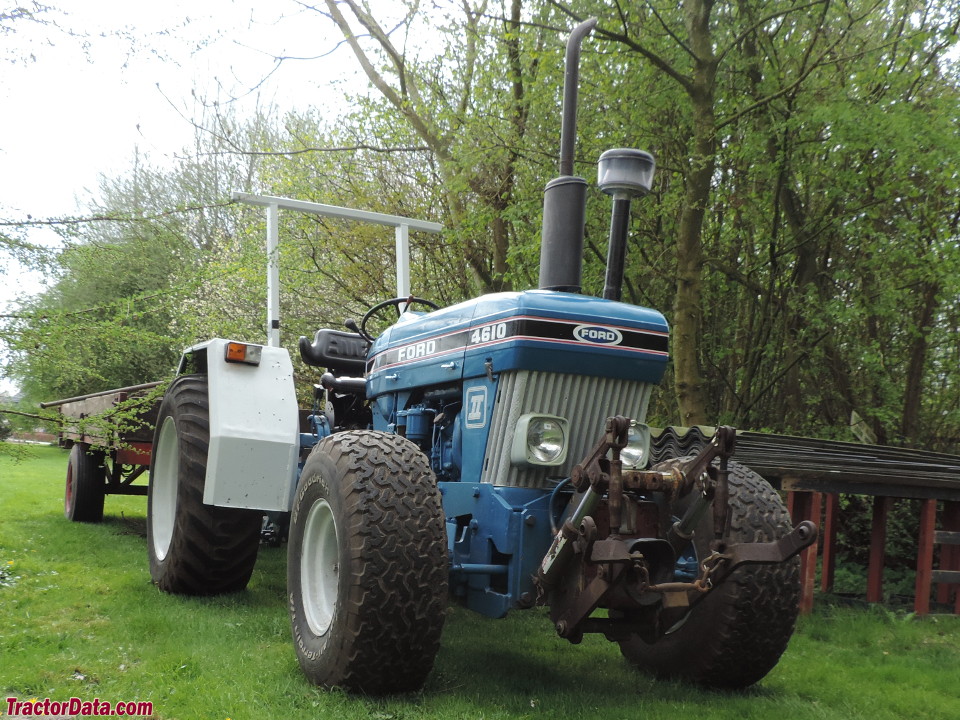

Ford 4610 Narrow
| | 1981 - 1989 |
| 10 Series | | Orchard/Vineyard tractor |
|
| Production |
| Manufacturer: | Ford
|
| Type: | Orchard/Vineyard tractor
|
| Ford 4610 Narrow Power |
| Engine (gross): | 64.5 hp
48.1 kW
|
| PTO (claimed): | 52 hp
38.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Open operator station.
|
| Transmission: | 8-speed gear
|
 Transmission details ... |
| Capacity |
| Fuel: | 16 gal
60.6 L
|
| Hydraulic system: | 12.1 gal
45.8 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 12.1 gal
45.8 L
|
| Pressure: | 2100 psi
144.8 bar
|
| Pump flow: | 8.5 gpm
32.2 lpm
|
| Steering flow: | 3.6 gpm
13.6 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position and draft control
|
| Rear lift (at 24"/610mm): | 3080 lbs
1397 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540
|
| Engine RPM: | 540@1800
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 46
|
| Battery volts: | 12
|
| Battery AH: | 128
|
