| 2002 - 2009 |
Utility tractor |
|
Transmissions overview |
8-speed |
12-speed |
Transmission |
Gears: | 8 forward and 2 reverse
|
Clutch: | 305mm dry disc
|
Oil capacity: | 44.4 qts 42.0 L
|
Four gears, plus reverse, in two ranges. |

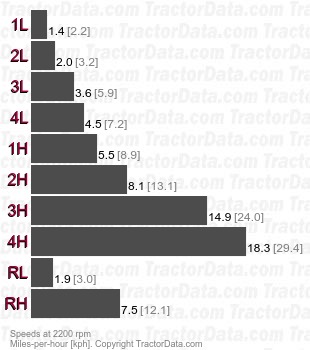

Speeds |
With 16.9R34 rear tires. |
|
Transmission |
Gears: | 12 forward and 4 reverse
|
Page information |
Last update: | January 4, 2018
|
Copyright: | Copyright 2021 TractorData LLC
|
Contact: | Peter@TractorData.com
|
