| 1993 - 2009 |
Utility tractor |
|
Transmissions overview |
8-speed |
16-speed |
Transmission |
Gears: | 8 forward and 2 reverse
|
Clutch: | 305mm dry disc
|
Oil capacity: | 46.5 qts 44.0 L
|
Four gears, plus reverse, in two ranges. |

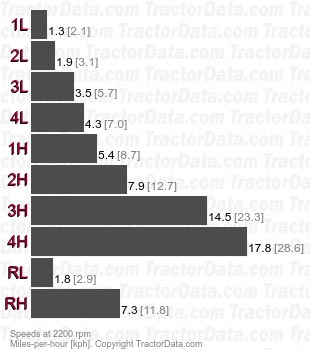

Speeds |
With 16.9R34 rear tires. |
|
Transmission |
Gears: | 16 forward and 8 reverse
|
Four gears, plus reverse, in two ranges with two-speed power shift. |
