| 1993 - 2009 |
Utility tractor |
|
Transmissions overview |
8-speed |
16-speed two-speed power shift |
12-speed |
Transmission |
Gears: | 8 forward and 2 reverse
|
Clutch: | 305mm dry disc
|
Oil capacity: | 44.4 qts 42.0 L
|
Four gears, plus reverse, in two ranges. |
Speeds |
With 16.9-34 rear tires. |
|
Transmission |
Type: | two-speed power shift
|
Gears: | 16 forward and 8 reverse
|
Four gears, plus reverse, in two ranges with two-speed power shift. |

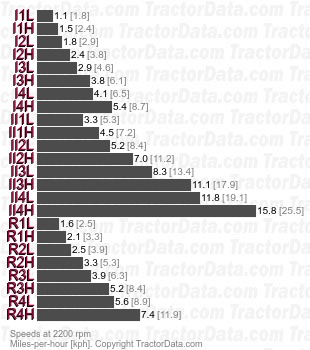

Speeds |
|
Transmission |
Gears: | 12 forward and 4 reverse
|
