Kubota FT23 Transmission


No photo available
2012 - 2015
FT Granforce Series
Compact Utility tractor
KT235
Series:FT21FT23FT25
FT240
Transmissions overview
12-speed
48-speed power shift
Transmission
Gears:12 forward and reverse
Clutch:dry disc
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.
Speeds

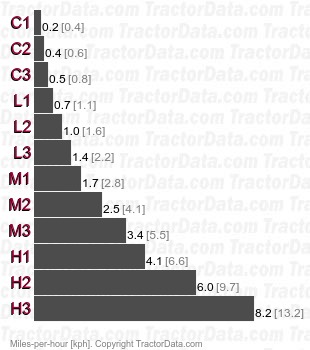

FT23   speeds
Transmission
Transmission:Glideshift
Type:power shift
Gears:48 forward and 30 reverse
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds

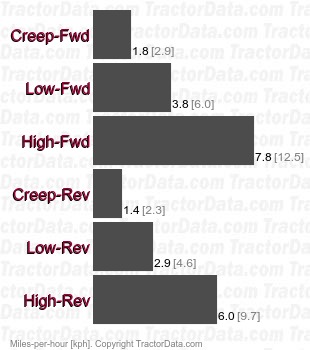

FT23 Glideshift power shift speeds
