Kubota KT250 Transmission


No photo available
2005 - 2008
KT Kingeye Series
Compact Utility tractor
KT24
Series:KT230KT250KT280
KT255
Transmissions overview
12-speed
48-speed power shift
Transmission
Gears:12 forward and reverse
Clutch:dry disc
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.
Speeds

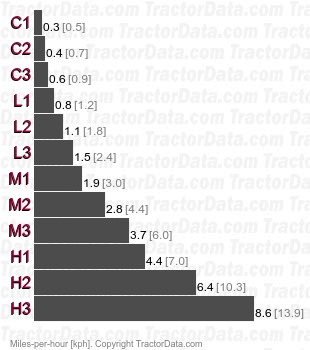

KT250   speeds
Transmission
Transmission:Glideshift
Type:power shift
Gears:48 forward and 30 reverse
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds

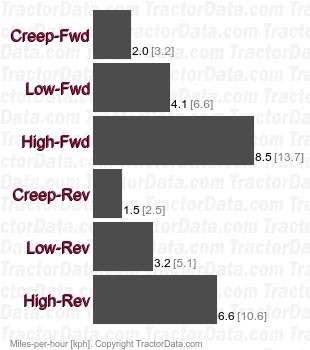

KT250 Glideshift power shift speeds
