Kubota M110A Transmission


No photo available
2009 - 2013
Grandom A Series
Utility tractor
M105D
Series:M100AM110AM115A
M110G
Transmissions overview
16-speed power shift
24-speed creeper
Transmission
Type:power shift
Gears:16 forward and reverse
Clutch:hydraulic wet disc
Eight power-shift gears in two ranges with shuttle.
Speeds

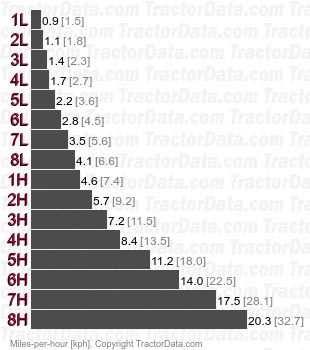

M110A  power shift speeds
Transmission
Type:creeper
Gears:24 forward and reverse
Optional creeper adds an additional 8-speed range to the standard transmission.
Speeds

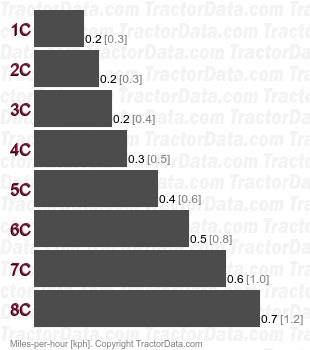

M110A  creeper speeds
