Kubota KL410 Hi-Speed Transmission


No photo available
2006 - 2007
KL Series
Compact Utility tractor
KL41
Series:KL380KL410 Hi-SpeedKL460
KL415
Transmissions overview
20-speed
30-speed
Transmission
Gears:20 forward and reverse
Four gears (1-4) in two ranges with three-range shift (creeper, medium, and high-speed).
Speeds

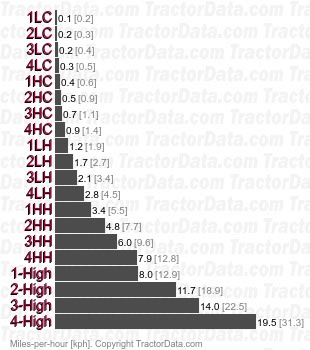

KL410 Hi-Speed   speeds
Transmission
Gears:30 forward and 20 reverse
Twelve gears in three ranges (creeper, medium, and high-speed) with shuttle shift. Only gears 1-8 available in reverse. In high-speed range only gears six forward and four reverse gears available.
