Kubota KL300 Transmission


No photo available
2006 - 2007
KL Series
Compact Utility tractor
KL30
Series:KL270KL300KL330
KL315
Transmissions overview
16-speed
24-speed
Transmission
Gears:16 forward and reverse
Four gears (1-4) in two ranges with additional creeper range and shuttle shift.
Speeds

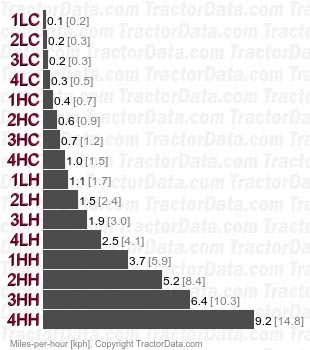

KL300   speeds
Transmission
Gears:16 forward and reverse
Eight gears in two ranges (creeper and high) with shuttle shift.
Transmission
Gears:24 forward and 16 reverse
Twelve gears in two ranges (creeper and high) with shuttle shift. Only eight gears available in reverse. 24-speed transmission only on tractors with cabin.
